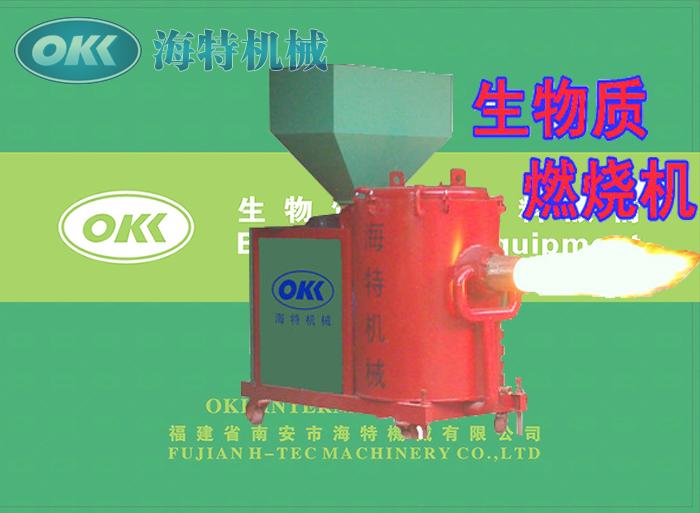

Biomass burner

Type:HF-60
corresponding boiler: 1ton
Fuel consumption：142(KG/H)
Power：5.5(KW)
Product description: Biomass burner
INQUIRY

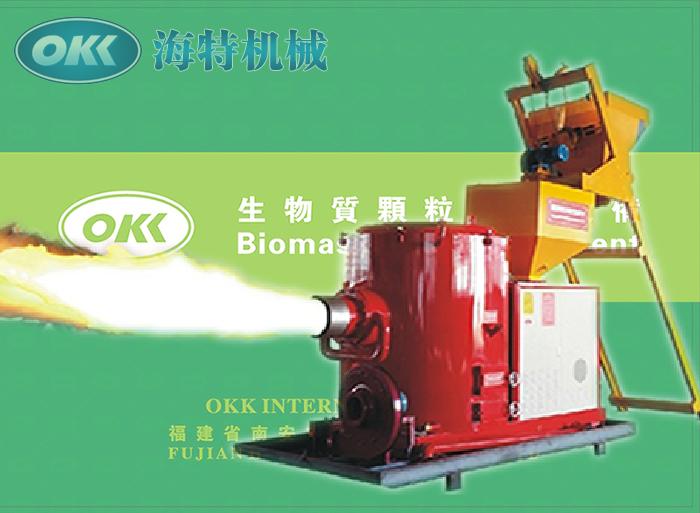

Biomass burner

Scope of application:Coating curing line,electrofacing,cataphoresis,drying paper and food,steam boiler,hot-water boiler,highway building mechanical equipment,manufacture annealing furance,pitch heating equipment,casting aluminum and copper,manufacture stone dyed panels,drying plant.ect.

Technical Parameters:

Model	Burner model	Corresponding boiler (t)	Rated heat voltage 104Kcal/H	Rated voltage(V)	Burner efficiency(%)	Fuel consumption KG/H	FIRE MOUTH SIZES
Model	Burner model	Corresponding boiler (t)	Rated heat voltage 104Kcal/H	Rated voltage(V)	Burner efficiency(%)	Fuel consumption KG/H	Outsize of fire mouth	Length of fire mouth	Height of mouth to land
air cooling device	HF-20-HT4.0	0.25	15	220	91	42	Φ195	220	540
air cooling device	HF-30-HT4.0	0.5	30	220		78	Φ200	220	740
air cooling device	HF-45-HT4.0	0.75	45	220		120	Φ200	230	900
Water cooling device	HF-60-HT4.0/3.0	1	60	380		142	Φ220	270	990
Water cooling device	HF-90-HT3.0	1.5	90	380		215	Φ250	300	1070
Water cooling device	HF-120-HT3.0	2	120	380		300	Φ273	330	1090
Water cooling device	HF-180-HT3.0	3	180	380		470	Φ273	300	1130
Water cooling device	HF-240-HT3.0	4	240	380		600	Φ300	350	1160
Water cooling device	HF-300-HT3.0	5	240	380		750	Φ350	350	1160
Water cooling device	HF-360-HT3.0	6	240	380		940	Φ400	350	1160
Water cooling device	HF-420-HT3.0	7	240	380		1100	Φ450	350	1160
